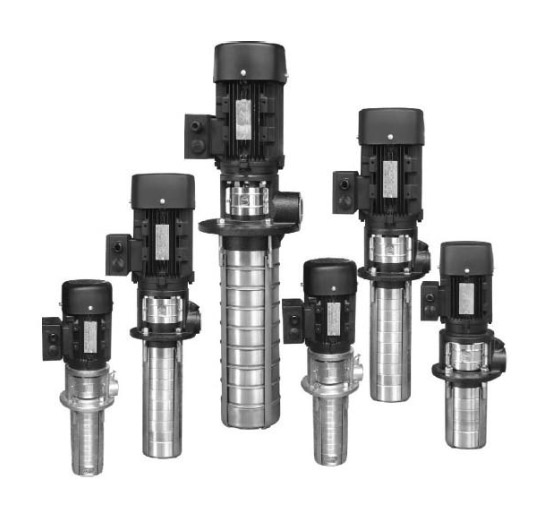

CDLK，CDLKF浸入式多級泵
一、CDLK，CDLKF浸入式多級泵概述：
CDLK，CDLKF浸入式多級泵為安裝標準電機的立式多級離心泵，電機軸通過泵頭用聯軸器直接與泵軸聯接，泵可根據需要配置智能保護器，對泵干轉、缺相、過載等進行保護。為滿足水槽或容器的安裝可安裝空腔體來改變泵本身的長度，不同的級數長度見尺寸和重量表和產品范圍表。
二、CDLK，CDLKF浸入式多級泵電機：
電機為全封閉，風冷式標準電機。
防護等級：IP55
絕緣等級：F
標準電壓：50HZ:1*220-230/240V
3*200/346V
3*220-240/380-415V
3*220-225/380-440V
其他電壓的電機按要求。
單相電壓從0.37-2.2kw。
三、CDLK，CDLKF浸入式多級泵運行條件：
稀薄、干凈、不含固體顆粒和纖維的非易爆液體，可輸送水溶液和切割潤滑液。
液體溫度：常溫型-15℃~+70℃
熱水型+70℃~+120℃
四、CDLK，CDLKF浸入式多級泵性能參數
| 型號規格 | 功率KW | 型號規格 | 功率KW | 型號規格 | 功率KW | 型號規格 | 功率KW |
| CDLK(F)1-20 | 0.37 | CDLK(F)2-20 | 0.37 | CDLK(F)3-20 | 0.37 | CDLK(F)4-20 | 0.37 |
| CDLK(F)1-30 | 0.37 | CDLK(F)2-30 | 0.37 | CDLK(F)3-30 | 0.37 | CDLK(F)4-30 | 0.55 |
| CDLK(F)1-40 | 0.37 | CDLK(F)2-40 | 0.55 | CDLK(F)3-40 | 0.37 | CDLK(F)4-40 | 0.75 |
| CDLK(F)1-50 | 0.37 | CDLK(F)2-50 | 0.55 | CDLK(F)3-50 | 0.37 | CDLK(F)4-50 | 1.1 |
| CDLK(F)1-60 | 0.37 | CDLK(F)2-60 | 0.75 | CDLK(F)3-60 | 0.55 | CDLK(F)4-60 | 1.1 |
| CDLK(F)1-70 | 0.37 | CDLK(F)2-70 | 0.75 | CDLK(F)3-70 | 0.55 | CDLK(F)4-70 | 1.5 |
| CDLK(F)1-80 | 0.55 | CDLK(F)2-90 | 1.1 | CDLK(F)3-80 | 0.75 | CDLK(F)4-80 | 1.5 |
| CDLK(F)1-90 | 0.55 | CDLK(F)2-110 | 1.1 | CDLK(F)3-90 | 0.75 | CDLK(F)4-100 | 2.2 |
| CDLK(F)1-100 | 0.55 | CDLK(F)2-130 | 1.5 | CDLK(F)3-100 | 0.75 | CDLK(F)4-120 | 2.2 |
| CDLK(F)1-110 | 0.55 | CDLK(F)2-150 | 1.5 | CDLK(F)3-110 | 1.1 | CDLK(F)4-130 | 3 |
| CDLK(F)1-120 | 0.75 | CDLK(F)2-160 | 2.2 | CDLK(F)3-120 | 1.1 | CDLK(F)4-140 | 3 |
| CDLK(F)1-130 | 0.75 | CDLK(F)2-170 | 2.2 | CDLK(F)3-130 | 1.1 | CDLK(F)4-150 | 3 |
| CDLK(F)1-140 | 0.75 | CDLK(F)2-180 | 2.2 | CDLK(F)3-150 | 1.1 | CDLK(F)4-160 | 3 |
| CDLK(F)1-150 | 0.75 | CDLK(F)2-190 | 2.2 | CDLK(F)3-170 | 1.5 | CDLK(F)4-170 | 4 |
| CDLK(F)1-170 | 1.1 | CDLK(F)2-200 | 2.2 | CDLK(F)3-190 | 1.5 | CDLK(F)4-180 | 4 |
| CDLK(F)1-190 | 1.1 | CDLK(F)2-220 | 2.2 | CDLK(F)3-210 | 2.2 | CDLK(F)4-190 | 4 |
| CDLK(F)1-210 | 1.1 | CDLK(F)2-230 | 3 | CDLK(F)3-230 | 2.2 | CDLK(F)4-200 | 4 |
| CDLK(F)1-230 | 1.1 | CDLK(F)2-240 | 3 | CDLK(F)3-250 | 2.2 | CDLK(F)4-210 | 4 |
| CDLK(F)1-250 | 1.5 | CDLK(F)2-260 | 3 | CDLK(F)3-270 | 2.2 | CDLK(F)4-220 | 4 |
| CDLK(F)1-270 | 1.5 | CDLK(F)3-290 | 2.2 | ||||
| CDLK(F)1-300 | 1.5 | CDLK(F)3-310 | 3 | ||||
| CDLK(F)1-330 | 2.2 | CDLK(F)3-330 | 3 | ||||
| CDLK(F)1-360 | 2.2 | CDLK(F)3-360 |
